2009-2018 Ram Power Folding Mirror Spare Parts for Non-Towing Mirrors

(Want the complete rebuilt/improved power folding mirror drive unit for the 4th Gen non-towing RAM trucks ? Click HERE)

(Want parts for the 5th Gen non-towing RAM trucks ? Click HERE)

Need spare parts for your NON-Towing 4th Gen RAM Truck power folding mirror drive unit ?

We sell a variety of gently used good condition spares to help owners save $ on expensive power folding mirror units.  These are all genuine OEM parts, used but in good condition and generally fit the 4th GEN 2009-2018 RAM trucks with power folding NON-TOWING mirrors (read notes below for each part, however).  These are all parts which cannot be bought separately from RAM without buying the entire mirror assembly for big bucks.  Please chose which parts are needed from the menu and if buying more than 1 item please just return to this page to select additional items (I know, I'm working on that..)

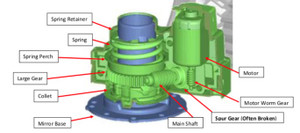

We offer the following parts, pictures are labelled to identify each part :

- Electronic Mirror Glass Adjuster Unit - 8 Pin Unit - Please verify yours is same

- Black Plastic Main Gear Carrier Basket

- Integral Gear Carrier Main Gear Brass Journal Bushings - set of 2

- Retaining Ring

- Collet (with tabs pre-ground)

- Main Spring

- Main Spring Lower Perch

- Center Gear

- Lower Case Half, Metal

- Round Circular Base (mounts onto vehicle)

- Upper Case Half, Metal

- Motor 2 Pin Wire plug with small length of pigtail (enough to solder onto the existing wiring)

- Case Pins (hold drive arm to drive unit - sold in set of 3 pins)

- Mirror Base Torx Mounting Screws (4 total)
